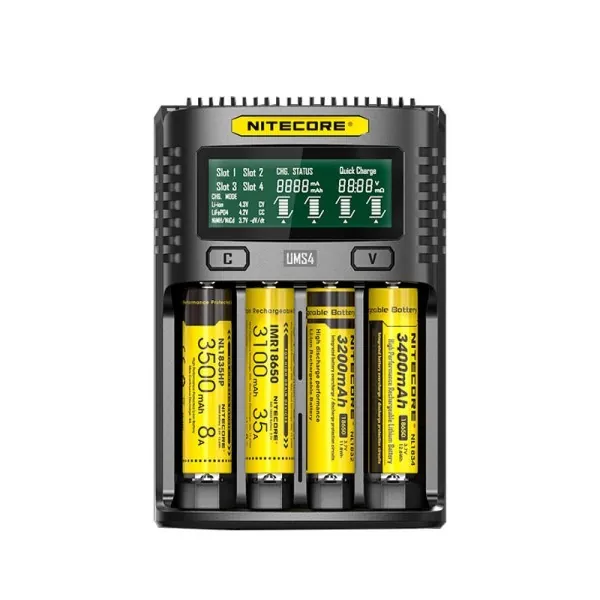

Nitecore UMS4 USB 4-Slot Charger
Nitecore UMS4 USB 4-Slot Charger
UMS4 is Nitecore's latest 4 slot charger. A smart charger that is compatible with many different batteries. The charger automatically detects the battery type and the optimal charging mode. The batteries are then charged individually at the same time. The process can be monitored on the display, such as volts, mah, and time. An intelligent automatic shut-off function turns off the power when charging is complete.
Parameters:
• Input: DC 5V / 2A 12V / 1.5A; 18W (MAX)
• Output voltage: 4.35V ± 1% / 4.2V ± 1% / 3.7V ± 1% / 1.48V ± 1%
• Output current;
QC mode: 3,000mA * 1 (MAX) 2,000mA * 2 (MAX) 1,000mA * 4 (MAX)
Standard mode: 2,000mA * 1 (MAX) 1,000mA * 2 (MAX) 500mA * 4 (MAX)
Specifications:
• QC Input available
• Total Max output of 4000mA. Single Slot max output 3000mA
• LCD screen for real-time charging information
• Multiple input sources available.
• Protection against short circuit and reverse polarity
• Energy-saving function
• Intelligent temperature regulation
Compatible with these battery types:
IMR / Li-ion / LiFePO4: 10440, 14500, 14650, 16500, 16340 (RCR123), 16650,
17350, 17500, 17650, 17670, 17700, 18350, 18490,
18500, 18650, 18700, 20700, 21700, 22500, 22650,
25500, 26500, 26650, 26700
Ni-MH / Ni-Cd: AA, AAA, AAAA, C, D
